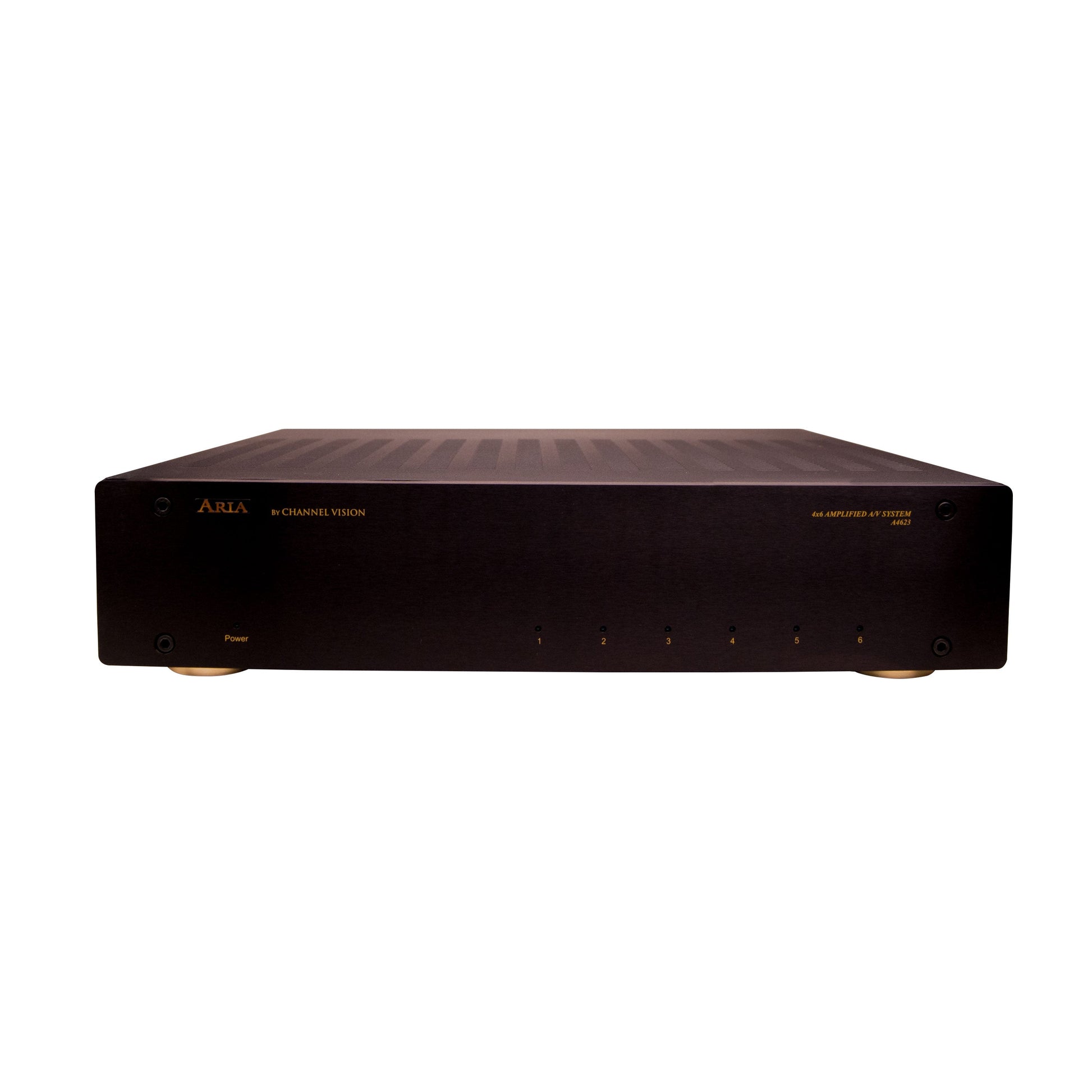

Channel Vision ARIA A4623 4 Input - 6 Zone - 12 CH Amplified A/V Controller

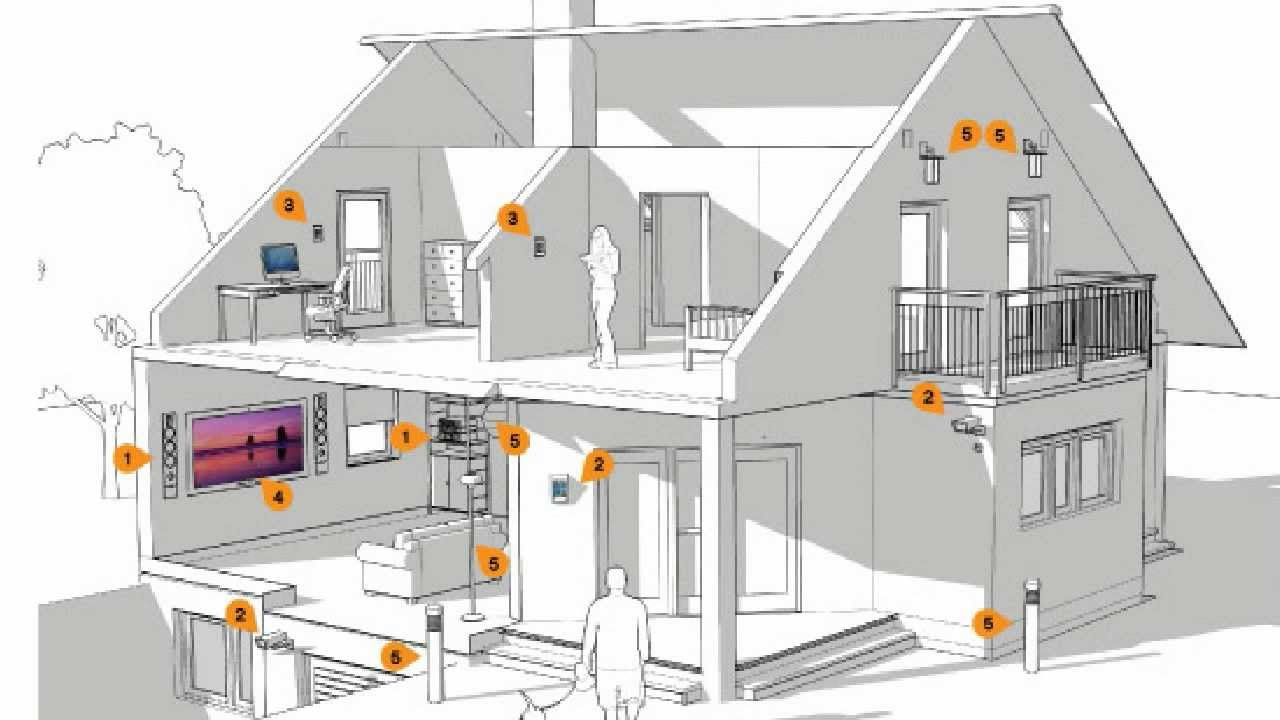

The Channel Vision A4623 4 Input 6 Zone Amplified A/V Controller is designed for whole-house audio/video distribution. The A4623 provides both pre-amp outputs and speaker level outputs for each of the 6 zones making it easy to add a higher power amplifier for more demanding applications. Any of the 4 source inputs can be selected and routed to any of the 6 outputs (or zones) independent of the other zones.

The Channel Vision A4623 4 Input 6 Zone Amplified A/V Controller features a built in amplifier, pre-amp outputs for adding more amplification, and IR/Serial Control options.  The A4623 is a cost effective and easy to install solution to manage your whole house audio video systems.

Cabling Plus is an Authorized Stocking Distributor of the entire line of Channel Vision Products.

• Includes: A4623 4 Input 6 Zone Amplified A/V Controller
• 4-input 6-zone amplified AV system
• Built-in Amplifiers: 20 Watts per channel
• Pre-amp outputs for adding more amplification
• Distributes 4 A/V source to 6 different zones
• IR and Serial Control options
• Cost effective and easy to install
• Rack Mount Amplified AV System (A4623R) not included
• Part#: A4623

• Audio

  • Bandwidth: 20-20kHz ±3dB
  • Power Output: 20W per channel
  • S/N ratio: >80dB
  • THD: < 0.5%

  Video

  • Bandwidth: DC-20MHz
  • Crosstalk: -60 dB
